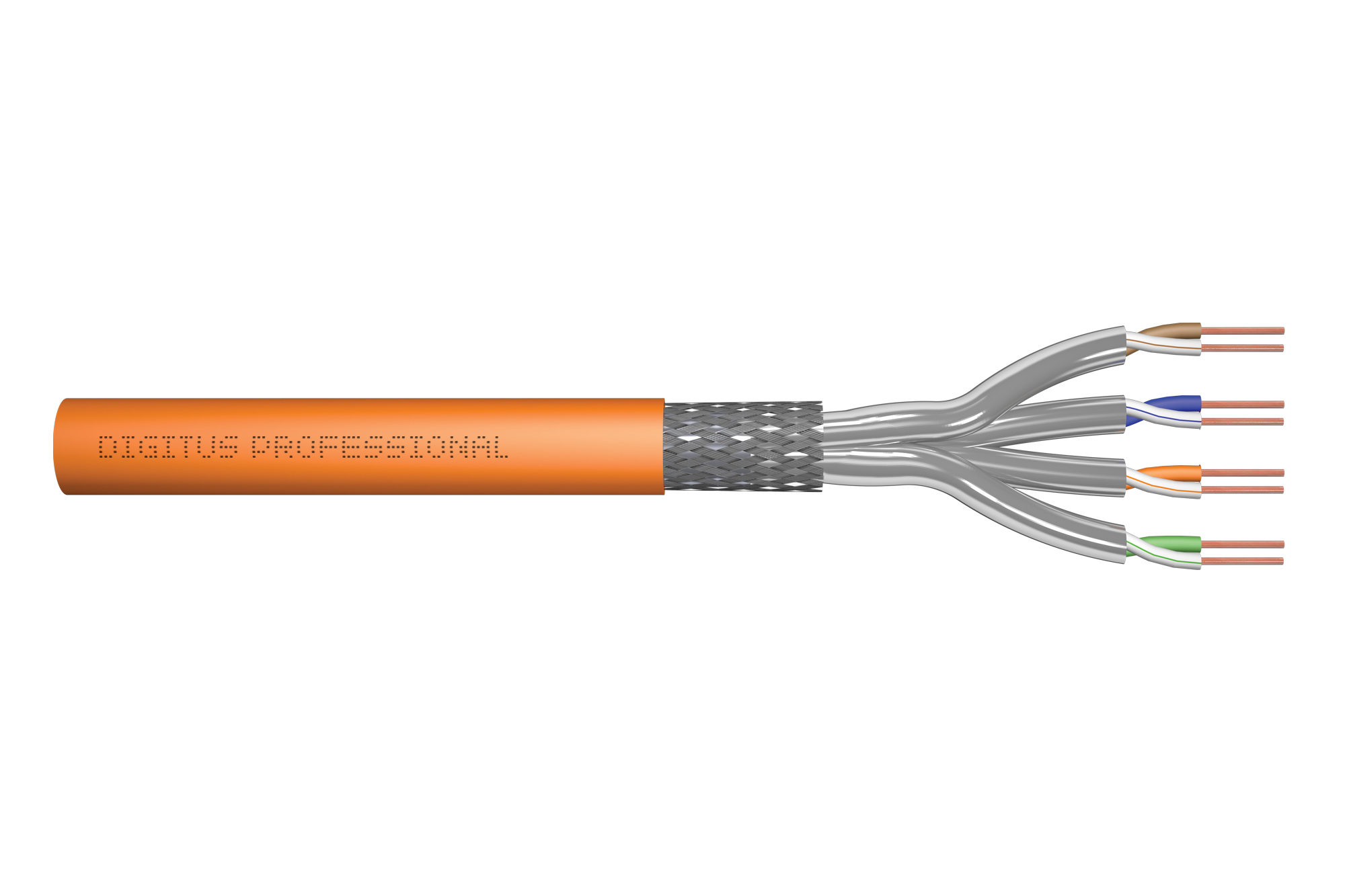

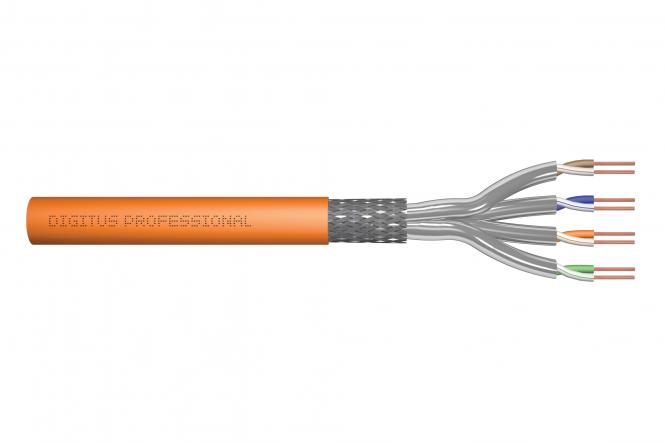

CAT 7 S/FTP data cable - installation cable, 100 m, simplex, Dca-s2, d1, a1

DIGITUS CAT 7 S/FTP data cable - installation cable, 100 m, simplex, Dca-s2, d1, a1

Broj artikla: DK-1743-VH-1
EAN: 4016032392101

CAT 7 S-FTP installation cable, 1200 MHz Dca (EN 50575), AWG 23/1, 100 m ring, Sx, orange

Future-oriented standards and high-end quality for your network.

  • 10GBit Ethernet
  • 1200 MHz transmission frequency
  • Permanent Link certified
  • PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)
  • BauPVO class Dca-s2 d1 a1

Vendor overview

More product information

Opis

The Digitus Cat 7 installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is ideal for the transmission of analog and digital data and supports PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt). The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Tehnički detalji

  • Physical properties:
  • Conductor: Bare copper wire, AWG 23/1
  • System(s) of assessment and verification of constancy of performance: System 3
  • Insulation: SFS-PE (foamed polyethylene jacket)
  • Total number of insulated conductors: 8, twisted into 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
  • Overall shielding: copper braiding
  • Outer sheath: Dca-s2,d1,a1 acc. to EN 50575; LSZH
  • Mechanical properties:
  • Strain relief: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +60 °C
  • Operating temperature range: -20 °C to +50 °C
  • Installation temperature range: 0 °C to +50 °C
  • Electrical properties:
  • Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
  • Capacitance: 45 pF/m nominal @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
  • Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
  • Operating voltage: 72 Vdc max.
  • Coupling attenuation: CA-Type 1b
  • Phase delay: 450 nS/100 m max.
  • Time delay: 10 nS/100 m max.
  • Separation class: "d" according to EN 50174-2
  • NVP: 79%
  • Flame spread: EN 60332-1-2 (LSOH-PVC)
  • Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
  • Smoke density: EN 61034-2

Attributes

  • Asortiman: Instalacijski kabeli s upredenim paricama
  • Kategorija: CAT 7
  • Oklop: S-FTP, oklop parova u metalnoj foliji i pletenica
  • CPR: Dca
  • Duljina: 100 m
  • Boja: narančasti
  • Kapica: LSOH
  • Struktura: 4 x 2 AWG 23/1, kruto upletena parica

Logistika

  Broj
(komad) 		Težina
(kg) 		Dubina
(cm) 		Širina
(cm) 		Visina
(cm) 		cm³
Jedinica pakiranja (vanjska) 1 5,10 33,00 33,00 12,00 13.068,00
Jedinica pakiranja (unutarnja) 1 5,07 33,00 33,00 11,00 11.979,00
Jedinica pakiranja (pojedinačna) 1 5,07 33,00 33,00 11,00 11.979,00
Carisnki tarifni broj: 8544492000
ETIM Class: EC000000

Safety notes

  • Data cables must not be bent, stretched or twisted excessively. Sharp bends can damage the cable sheath and lead to failures or short circuits.
  • Installation only by trained specialists.
  • Installation only in dry rooms.
  • The data cable must not be in direct contact with other electrical cables or high-voltage sources in order to avoid electromagnetic interference.

EU responsible person

EU based economic operator ensuring the product complies with the required regulations.

ASSMANN Electronic GmbH
Auf dem Schüffel 3
Lüdenscheid
Germany
https://www.assmann.com
info@assmann.com
