SATA priključni kabel

DIGITUS SATA priključni kabel

Broj artikla: AK-400104-005-R
EAN: 4016032299530

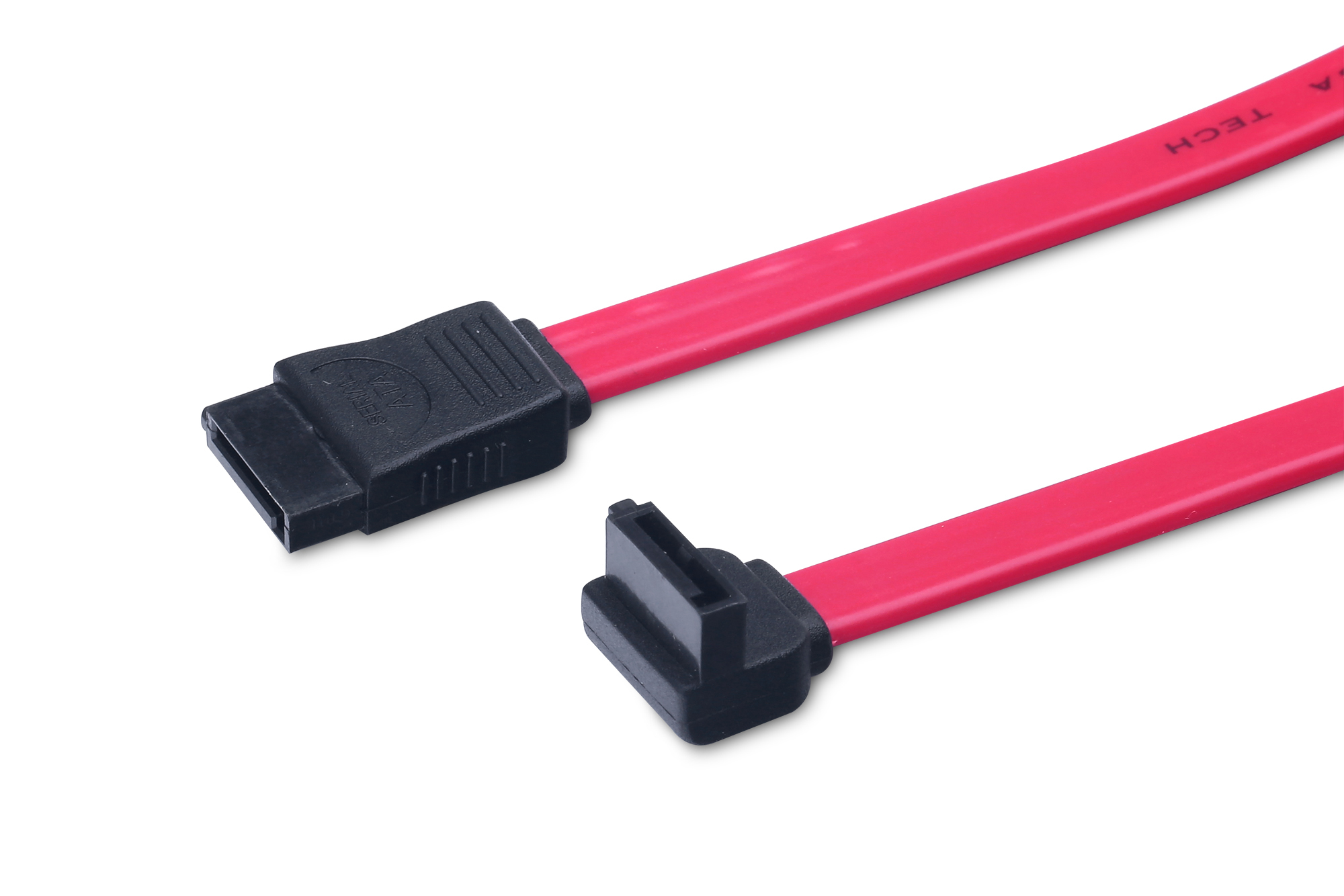

SATA connection cable, L-type F/F, 0.5m, 90° l-angled - straight,

Manje nakupljanja topline u računalu

Vendor overview

More product information

Opis

Ovaj interni podatkovni kabel pogodan je, na primjer, za povezivanje Serial ATA tvrdi diskova i CD/DVD/Blu-ray uređaja za snimanje/pregledavanje s matičnom pločom te je unatrag kompatibilan sa SATA Rev. II/I. Zbog 90° konektora pod kutom kabel se proteže prema gore od horizontalno postavljenog tvrdog diska.

Tehnički detalji

  • Kompatibilno sa Serial ATA standardom
  • Brzina prijenosa podataka do 300 MB/s
  • 7-žilni kabel, UL21149
  • 4 x podatkovni kabel, 3 x uzemljujući kabel
  • Čep je pod kutom od 90°.

Attributes

  • Asortiman: SATA kabeli
  • Blokiranje: nema
  • Brzina podataka: 6 Gbit/s
  • Inačica: SATA Revizija 3
  • Kabel u boji: crveni
  • Kapice: ukalupljeno
  • Konektor 1: SATA (7 polni) konektor, pod kutom od 90°, L-tip
  • Konektor 2: SATA (7 polni) konektor, L-tip
  • Konektor u boji: crni
  • Vrsta: Ravni kabel
  • Duljina: 0.5 m

Downloads and Certificates

Tehnička dokumentacija

Logistika

  Broj
(komad) 		Težina
(kg) 		Dubina
(cm) 		Širina
(cm) 		Visina
(cm) 		cm³
Jedinica pakiranja (vanjska) 300 6,10 46,00 32,00 25,00 36.800,00
Jedinica pakiranja (unutarnja) 10 0,20 19,00 16,00 5,00 1.520,00
Jedinica pakiranja (pojedinačna) 1 0,02 15,00 6,00 2,50 225,00
Carisnki tarifni broj: 8544429090

Safety notes

  • When plugging and unplugging the cable, only grasp the plug and do not pull directly on the cable.
  • Cables must not be kinked sharply or bent at tight angles, as this can damage the inner wires and lead to failures.
  • Make sure that the cables are not under tensile load, as this can damage the insulation and the wires inside the cable.
  • Ensure that cables are not laid in areas where they can be easily damaged mechanically.
  • Cables should not be used in environments with extremely high or very low temperatures. Observe the product information on the maximum operating temperature of the cable
  • Check cables regularly for visible damage such as cracks, kinks or signs of wear. Defective cables should be replaced immediately to avoid failures, short circuits or even electric shocks.
