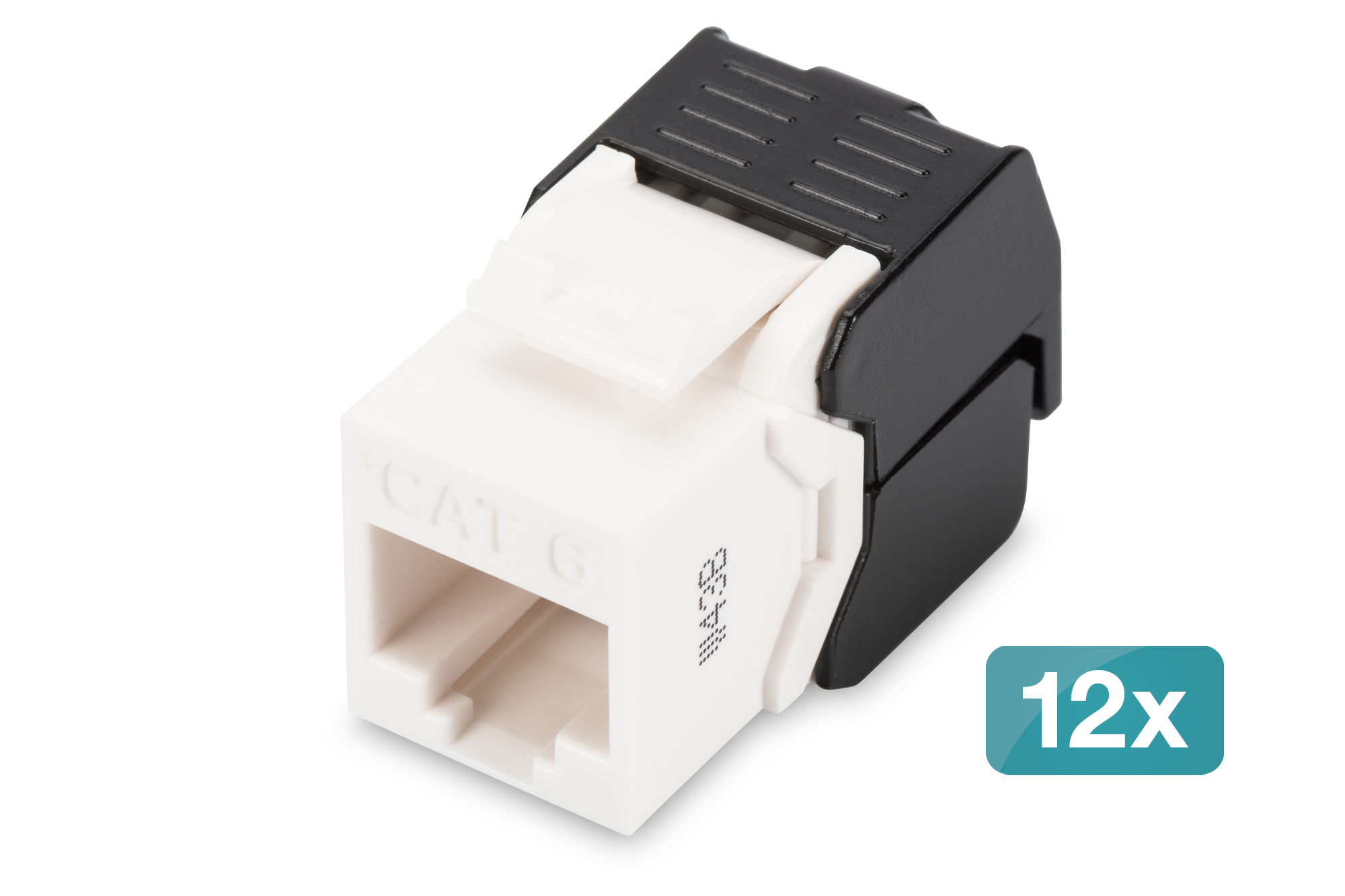

Keystone utični modul Kat. 6, neoklopljeni - 12 ks

DIGITUS Keystone utični modul Kat. 6, neoklopljeni - 12 ks

Broj artikla: DN-93603-12
EAN: 4016032334125

DIGITUS CAT 6 Keystone Jack, unshielded RJ45 to LSA, Tool Free Connection, in bulk with 12

Future-oriented standards and high-end quality for your network.

  • GHMT certified

Vendor overview

More product information

Opis

Artikl DN-93603-12 iz DIGITUS® ponude je neoklopljeni keystone utični modul za ožičenje bez alata koji osigurava najbolje moguće performanse i kvalitetu linka Vaše mreže. Kompaktan dizajn omogućava ugradnju 24 komada na 1U prespojnim panelima 483 mm (19").

Tehnički detalji

  • Transmission property: Category 6
  • Application areas: Up to 250 MHz, 1GBase-T
  • Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for 483 mm (19") rack mounting
  • RJ45 sockets, 8P8C
  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
  • Cable fixing by means of quick latches
  • Tool-free mounting connection
  • Technical features:
  • RJ45 socket material: ABS UL 94V-0
  • LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • In accordance with IEC 60512-5, IEC 60512-6-5
  • Core receptacle: 22-26 AWG solid and stranded conductors
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
  • 12 pcs.

Attributes

  • Kategorija: CAT 6

Downloads and Certificates

Tehnička dokumentacija

Vodič za brzi početak

Logistika

  Broj
(komad) 		Težina
(kg) 		Dubina
(cm) 		Širina
(cm) 		Visina
(cm) 		cm³
Jedinica pakiranja (vanjska) 72 7,50 47,20 30,00 19,00 26.904,00
Jedinica pakiranja (unutarnja) 1 0,10 7,60 7,20 5,60 306,43
Jedinica pakiranja (pojedinačna) 1 0,10 18,00 12,00 7,00 1.512,00
Carisnki tarifni broj: 8536699099
ETIM Class: EC001121

Safety notes

  • Protect product from moisture
  • Avoid antistatic charging when installing the product
  • Observe the specifications of the raw cable manufacturer during installation
