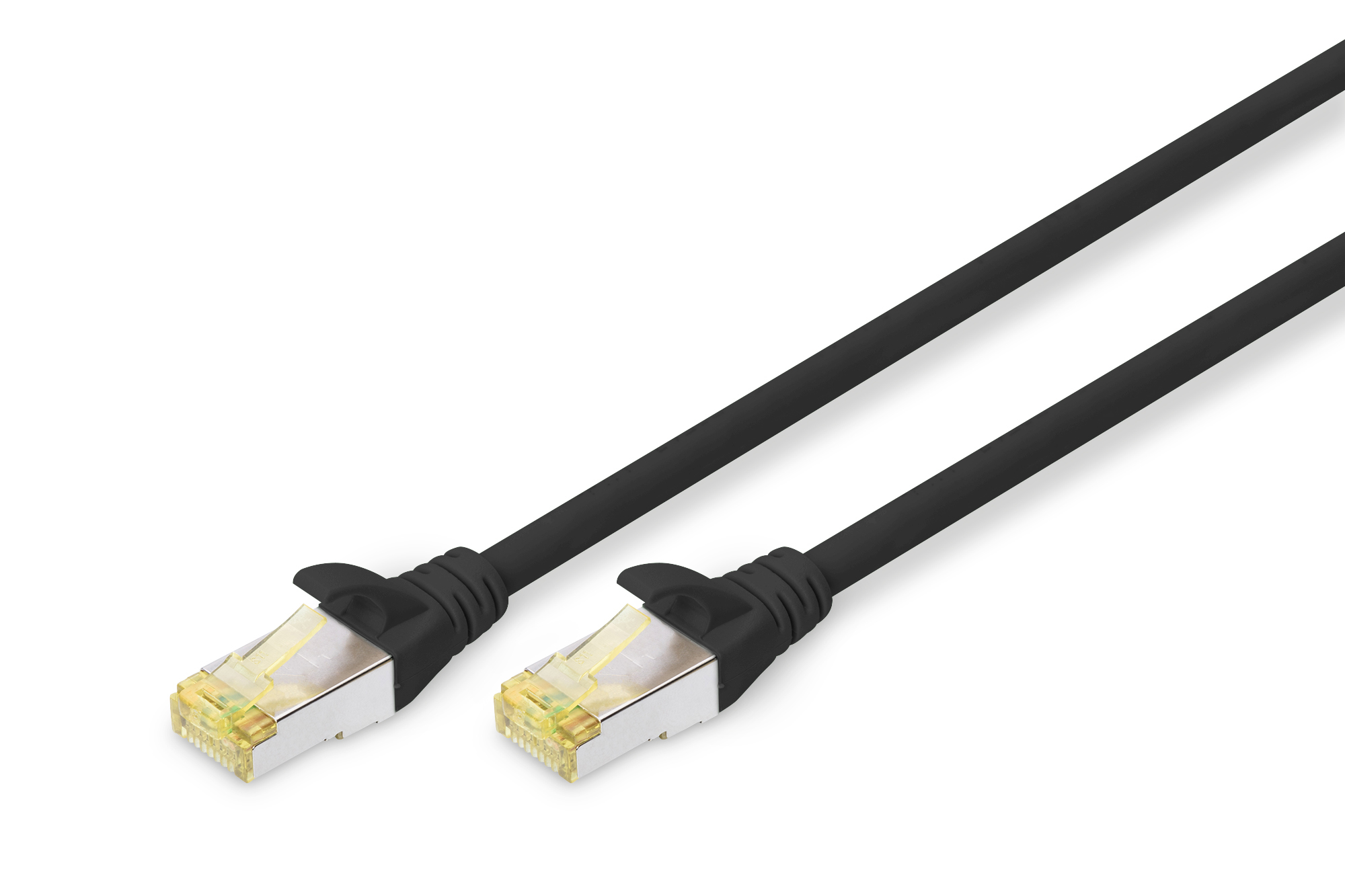

CAT 6A S/FTP patch kabel

DIGITUS CAT 6A S/FTP patch kabel

Broj artikla: DK-1644-A-0025/BL
EAN: 4016032327127

CAT 6A S-FTP patch cable, Cu, LSZH AWG 26/7, length 0.25 m, color black

Standardima usmjereni prema budućnosti i vrhunska kvaliteta za vašu mrežu.

  • S vanjskom navlakom LSZH (Low Smoke Zero Halogen) za optimalno ponašanje pri požaru i nisku emisiju dima.
  • Prozirni žuti utikač s metalnim oklopom za jednostavno prepoznavanje Kategorije 6A (500 MHz)
  • Unutarnji vodič: Bakar (Cu)
  • Kompatibilno s PoE+

Vendor overview

More product information

Opis

DIGITUS® patch kabeli kategorije 6A klase EA proizvedeni su i testirani u skladu sa standardima ISO/IEC 11801 i DIN EN 50173 CAT 6A. Oni jamče da je instalacija kabela u skladu sa specifikacijama kanala ISO & EN i nude izvanredne performanse u DIGITUS® CAT 6A ožičenju. Performanse su testirane do 500 MHz, uključujući karakteristike performansi kao što je near-end crosstalk (NEXT). DIGITUS® patch kabeli posebno su razvijeni kako bi u potpunosti zadovoljili sve zahtjeve u različitim područjima primjene. Svaki kabel opremljen je injekcijski oblikovanim navlakom protiv uvijanja s odvodom naprezanja. Navlaka također ima zaštitu s polugom na čep, koja sprječava zapinjanje kabela i lom poluge na konektoru. Žuta boja konektora olakšava prepoznavanje kategorije 6A.

Tehnički detalji

  • 2x RJ45 utičnice (8P8C)
  • Navlake s zaštitom od uvijanja, od ublažavanja naprezanja i zaštitom poluge zaključavanja
  • Oznaka duljine na kapuljačama
  • Unutarnji vodič: Bakar (Cu)

Attributes

  • Ambalaža: DIGITUS Polybag
  • Asortiman: Patch kabeli s upredenim paricama
  • Konektor 1: Modularni RJ45 (8/8) utikač
  • Konektor 2: Modularni RJ45 (8/8) utikač
  • Konfiguracija: 1:1
  • Kategorija: CAT 6A
  • Oklop: S-FTP, oklop parova u metalnoj foliji i pletenica
  • Duljina: 0.25 m
  • Boja: crni
  • Kapica: LSOH
  • Struktura: 4 x 2 AWG 26/7, upletena parica
  • Tanka verzija: Ne
  • Flat Version: Ne

Downloads and Certificates

Certifikati

Tehnička dokumentacija

Logistika

  Broj
(komad) 		Težina
(kg) 		Dubina
(cm) 		Širina
(cm) 		Visina
(cm) 		cm³
Jedinica pakiranja (vanjska) 300 6,50 38,00 29,00 22,00 24.244,00
Jedinica pakiranja (unutarnja) 10 0,22 16,00 15,00 5,00 1.200,00
Jedinica pakiranja (pojedinačna) 1 0,02 22,00 11,50 1,00 253,00
Carisnki tarifni broj: 8544421000

Safety notes

  • When plugging and unplugging the cable, only grasp the plug and do not pull directly on the cable.
  • Cables must not be kinked sharply or bent at tight angles, as this can damage the inner wires and lead to failures.
  • Make sure that the cables are not under tensile load, as this can damage the insulation and the wires inside the cable.
  • Ensure that cables are not laid in areas where they can be easily damaged mechanically.
  • Cables should not be used in environments with extremely high or very low temperatures. Observe the product information on the maximum operating temperature of the cable
  • Check cables regularly for visible damage such as cracks, kinks or signs of wear. Defective cables should be replaced immediately to avoid failures, short circuits or even electric shocks.

EU responsible person

EU based economic operator ensuring the product complies with the required regulations.

ASSMANN Electronic GmbH
Auf dem Schüffel 3
Lüdenscheid
Germany
https://www.assmann.com
info@assmann.com
