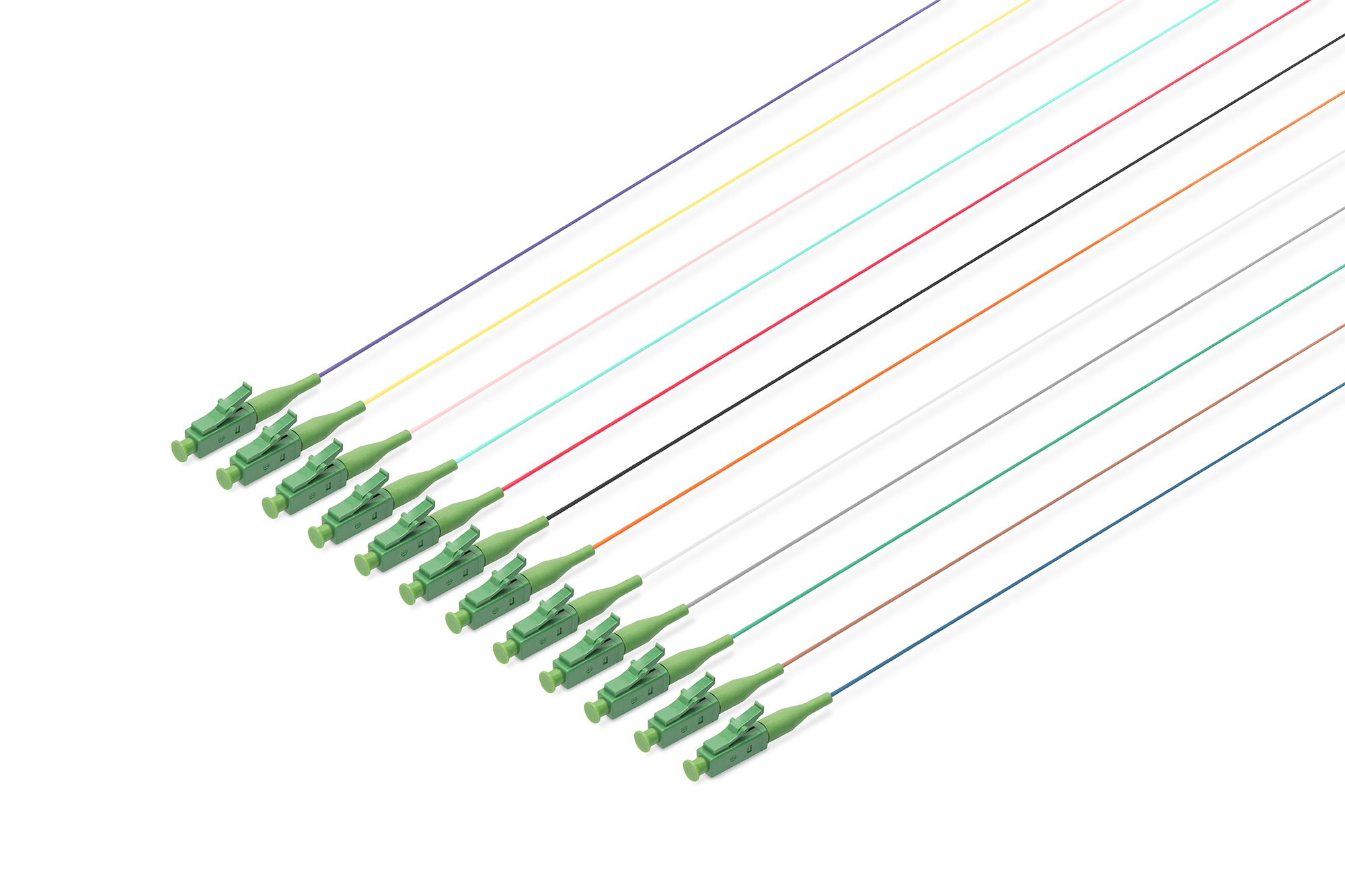

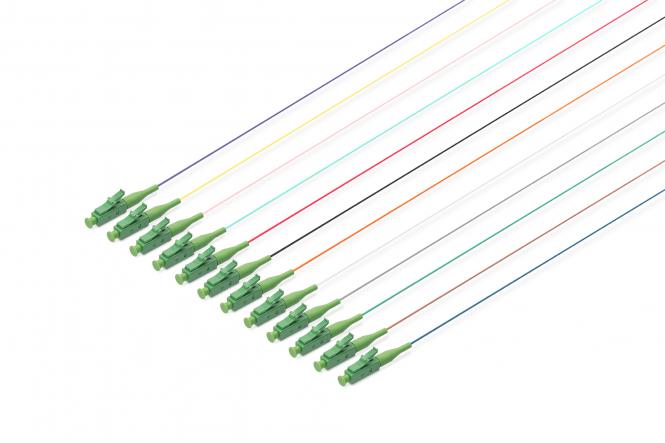

Jednostrani OS2 pigtaili u jednobojnoj LC/APC izvedbi

DIGITUS Jednostrani OS2 pigtaili u jednobojnoj LC/APC izvedbi

Broj artikla: DK-29332-02/APC
EAN: 4016032428848

DK-29332-02/APC pigtail kabel SM LC(APC) loose buffer, color code DIN IEC 304, 2 m

Standardima usmjereni prema budućnosti i vrhunska kvaliteta za vašu mrežu.

Vendor overview

More product information

Opis

DIGITUS® optički vlaknasti pigtail kabeli dostupni su u LC simplex, SC simplex i ST simplex verzijama te vam nude izvrsne performanse i kvalitetu veze za vašu mrežu s klasama OS2, OM2, OM3 i OM4. Konektor je u skladu sa standardom IEC 61754-4 2002 i opremljen je keramičkom ferulom od cirkonije. Setovi obojenih vlakana označeni su prema standardu IEC 304 (bijela, ljubičasta, tirkizna, crna, crvena, ružičasta, narančasta, siva, zelena, žuta, smeđa, plava).

Tehnički detalji

  • Simplex OS2 09/125 µ 2 m
  • Konektori u skladu sa standardom IEC 61754-4 2002
  • Radna temperatura: -25 °C do +80 °C
  • Raspon temperatura za transport i skladištenje: -20 °C do +65 °C
  • Gubitak umetanja MM PC: max. 0,4 dB
  • Gubitak povrata MM PC: > 25 dB
  • Keramička ferula od cirkonije
  • Dimenzije sekundarnog premaza: Ø 0,9 ± 0,1 mm
  • Osnovni premaz: akrilati; Ø 250 ± 15 µm
  • Setovi obojenih vlakana u skladu s IEC 304 u sljedećim bojama: bijela, ljubičasta, tirkizna, crna, crvena, ružičasta, narančasta, siva, zelena, žuta, smeđa, plava
  • 12 komada po pakiranju
  • Slobodni međuspremnik

Attributes

  • Klasa vlakna: OS2
  • Konektor 1: LC (APC)
  • Mod: Jednomodni
  • Promjer vlakna: 9/125µ
  • Stopica: jednobojna
  • Duljina: 2 m

Downloads and Certificates

Tehnička dokumentacija

Logistika

  Broj
(komad) 		Težina
(kg) 		Dubina
(cm) 		Širina
(cm) 		Visina
(cm) 		cm³
Jedinica pakiranja (vanjska) 160 10,40 45,00 45,00 40,00 81.000,00
Jedinica pakiranja (unutarnja) 1 0,07 17,00 19,00 0,10 32,30
Jedinica pakiranja (pojedinačna) 1 0,07 17,00 19,00 0,10 32,30
Carisnki tarifni broj: 8544700000

Safety notes

  • Avoid direct contact with light sources: Fiber optic cables, especially those with active light sources such as lasers (e.g. in optical communication systems), can emit dangerous radiation that can damage
  • eyes. Take care never to look directly into the light of an optical fiber, even if the light source is invisible to the naked eye.
  • When working with fiber optic cables, especially during tests or when working with lasers, protective goggles should always be worn to protect against harmful radiation.
  • When plugging and unplugging the cable, only grasp the plug and do not pull directly on the cable.
  • Do not kink or crush: Fiber optic cables are sensitive to mechanical stress.
  • To protect cables from physical damage, they should be laid in special ducts or with protective materials
  • Keep cable connectors clean: Fiber optic cables are sensitive to dust and dirt. Even small particles on the connectors can severely impair the signal quality.
  • Cables should not be used in environments with extremely high or very low temperatures. Observe the product information on the maximum operating temperature of the cable
  • Check cables regularly for visible damage such as cracks, kinks or signs of wear. Defective cables should be replaced immediately.
