DIGITUS OnLine UPS system, 6 kVA/ 6 kW

Broj artikla: DN-170106

EAN: 4016032473541

OnLine UPS Module, 6000VA/6000W 2U

The parallel-redundant OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.

High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
User-friendly LCD screen provides insight into the UPS status for easy installation, configuration and operation.

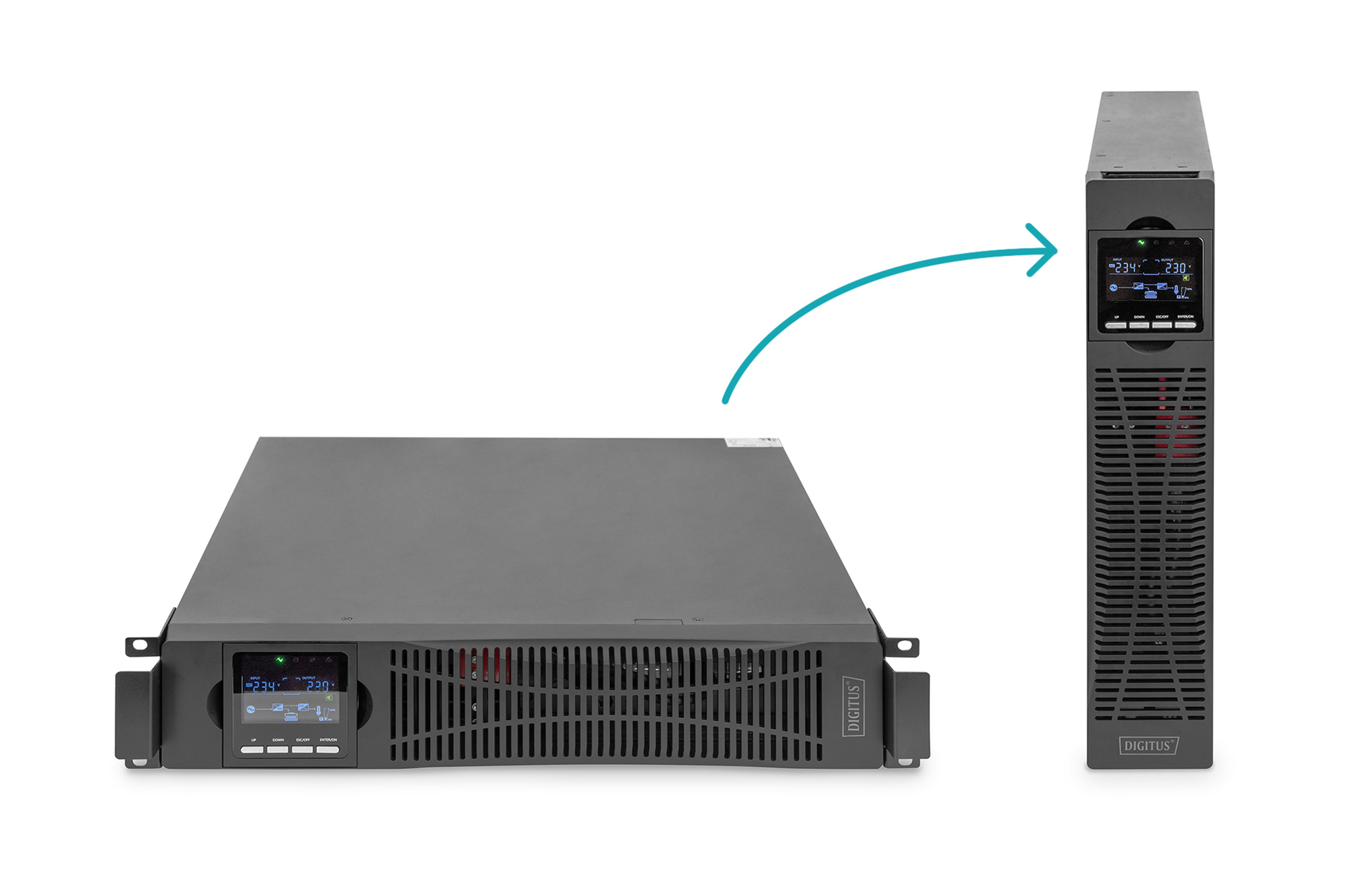

Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
External battery modules allow the runtime to be extended.
Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system
Automatic battery self-test and fan speed control increase the service life of the components.
The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging a
Parallel / redundant operation possible (up to 4 devices in parallel), this supports maximum availability and enables growth with increasing load requirements.
The UPS only requires 2 height units in the rack, which enables simple installation and saves space in the rack for other components.

Vendor overview

More product information

Opis

The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements. The UPS does not have internal batteries, these must be ordered separately as external battery modules (article number: DN-170108).

Tehnički detalji

Online double conversion system (VFI-SS-111)
Input: Input terminals / fixed wiring
Output: Output terminals / fixed wiring
Nominal system power: 6 kVA / 6 kW, power factor 1.0
AC-AC (online VFI) efficiency: 94 %, ECO mode efficiency: 97 %.
No internal battery. External battery module: DN-170108 Up to 4 ECB can be connected.
Network connection: Optional SNMP/Webcard (part number DN-170100) enables the UPS to be monitored remotely.
Optional relay card (part number DN-xxxxx) with potential-free inputs and outputs (bypass, UPS ON, AC error, Batt low, UPS alarm)
Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
Emergency Power-off (EPO) contact for switching off the UPS in an emergency
Maximum operating temperature: 0 - 40 °C
Storage temperature: -25 - 55 °C
Relative humidity: 20 - 90% non-condensing
Operating altitude: < 1500 m
Product dimensions WxDxH (mm): 440 (19") x 620 x 86.5 (2U)
Product weight: 13.8 kg
Shipping dimensions WxDxH (mm): 615 x 765 x 214
Shipping weight: 18.9 kg
Safety standards: IEC/EN62040-1,IEC/EN60950-1
EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
Approval: CE declaration
Scope of delivery: UPS device (without internal battery), UPS manual, UPS QSG, feet for tower installation, UPS software license, USB cable, 19" installation bracket
Optionally available: 19" UPS mounting kit (profile rails), article number DN-170109
IP protection class: IP21
Heat dissipation: 1638 BTU/h
Noise level in online mode: approx. 50 dB(A) at a distance of 1 m (may vary slightly depending on load and ambient temperature).

Attributes

El. snaga: 6000VA – 10000VA
Tehnologija: Online dvostruka konverzija
Ugrađivanje: Radna površina, Stalak
Ugrađivanje: Radna površina, Stalak 0U, Stalak 1U
Utikač: Kruto ožičeno
Inčni faktor oblika (IEC 60297): 482,6 mm (19")

Sadržaj paketa

1 x OnLine UPS system, 6 kVA/ 6 kW
1 x operating instructions
1 x USB connection cable, 1.5 m
1 x RS232 cable, 1.5m
1 x parallel cable, 1.5 m
UPS software license
Note: Battery not included in the scope of delivery

Downloads and Certificates

Dodatni softver

CE dokumenti

DoC EU PL

Certifikati

ext. Link

Tehnička dokumentacija

Priručnik

Vodič za brzi početak

Logistika

	Broj (komad)	Težina (kg)	Dubina (cm)	Širina (cm)	Visina (cm)	cm³
Jedinica pakiranja (vanjska)	1	19,20	79,50	55,50	20,20	89.127,45
Jedinica pakiranja (unutarnja)	1	19,20	0,00	0,00	0,00	0
Jedinica pakiranja (pojedinačna)	1	19,20	76,50	61,50	21,40	100.681,65

Carisnki tarifni broj: 8504409500

ETIM Class: EC000382

Safety notes

The UPS system must be absolutely dry before it is installed. Please allow the UPS system to acclimatize for at least two hours to adapt to the environment.
Protect the UPS system from water or moisture.
Avoid direct sunlight or installation near heat sources.
Do not block any ventilation openings in the housing.
Do not connect any devices or appliances that would overload the system.
Lay cables so that nobody can step on them or trip over them.
Do not connect any household appliances to the output sockets of the UPS system.
Only connect the UPS system to an earthed and easily accessible socket.
Only use VDE-tested, CE-marked mains connection cables at the input and outputs.
Never disconnect the mains connection cable during operation as this would cancel the protective earthing of the UPS system and all connected loads.
The UPS system has its own internal power source. The output sockets or output terminals of the UPS system can be energized even if the UPS system is not connected to the building cabling.
To switch off the UPS system completely, first press the OFF/Enter button to disconnect the mains.
Caution - Risk of electric shock. Even after disconnecting the device from the mains, the components inside the UPS system are still connected to the battery. There is a risk of electric shock.
Only persons who are sufficiently familiar with batteries and the necessary safety precautions may replace batteries and monitor operation.
Caution - Risk of electric shock. The battery circuit is not isolated from the input voltage. Dangerous voltages can occur between the battery terminals and the ground. Ensure that no voltage is present before touching!
When replacing the batteries, install the same number and type of batteries.
Do not open or destroy batteries. Leaking electrolyte can injure the skin and eyes and may be toxic.
The appliance may only be opened and repaired by a trained specialist.
