DIGITUS Charging Trolley for Notebooks / Tablets up to 14 inch

Broj artikla: DN-45000

EAN: 4016032465331

Charging trolley, 30 charge bases, black 1100 x 700 x 600 mm, incl. USB, PDU, fan

The ideal solution for storing and charging your portable devices.

30 stations (3x10) for devices
30 x USB connection
3 x socket strip installed on the back (10 x safety sockets including switch)
Cable feedthrough and excessive cable storage on each level
Compact housing, mobile thanks to installed rollers
3 x ventilator (24 V) for active cooling of the cabinet
Incl. RCD 30 mA (residual current operated device)

Vendor overview

More product information

Opis

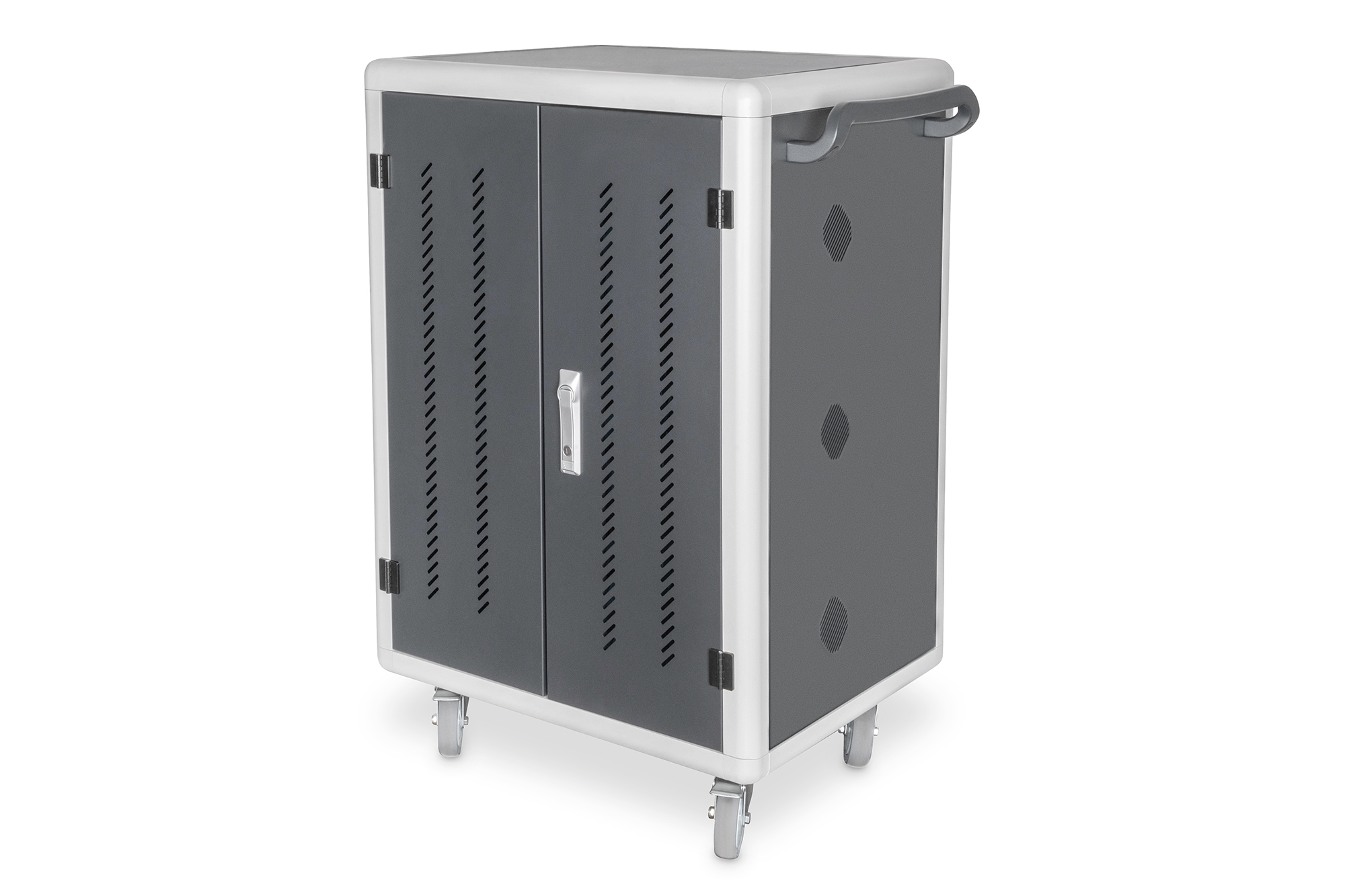

The mobile charging cabinet from DIGITUS® is the ideal and compact solution for storing and charging your portable devices such as notebooks and tablets. Mobile charging cabinets are frequently used in public facilities such as schools in order to store devices securely at a central location while charging them at the same time. The cabinet includes 3 rows with 10 charging stations each, all of which have their own USB connection on the front. The devices can also be connected with installed socket strips (3 x 10 safety sockets) at the back. Thanks to ample cable feedthroughs and excess cable storage, optimal cable management is guaranteed. Installed ventilators (3 x 24 V) combined with ventilation slits ensure active cooling of the cabinet.

Tehnički detalji

Double Folding Front and Back Door
Pressure lock system with swiveling lever handle on the front and back door, lockable
180° door opening angle
2-point locking (rod lock)
Incl. 4 rollers (2 lockable)
Including handles for better mobility (enclosed)
Product dimensions (H x W x D) in mm: 1110 x 824 x 600 mm
Safety plug socket (AC) with switch on the side
C20 connection on the side
Incl. RCD 30 mA (residual current operated device)
Delivery is completely assembled
Depth of inner tray: 315 mm (suitable for up to 14" devices)
Casters can be dismantled if necessary

Attributes

Bočne ploče: Obje strane
Boja: crna, RAL 9005
Dubina: 650 mm
Jedinice: 0
Prednja vrata: Čelična vrata, perforirana, dvostruko otvaranje
Širina: 700 mm
Stražnja vrata: Čelična vrata, perforirana, dvostruko otvaranje
IP klasa zaštite: IP20
Montirano: Da

Sadržaj paketa

Mobile charging cabinet
2 x handle (for installation on outside) including mounting material
Power cable

Downloads and Certificates

Tehnička dokumentacija

Datasheet HR

Logistika

	Broj (komad)	Težina (kg)	Dubina (cm)	Širina (cm)	Visina (cm)	cm³
Jedinica pakiranja (vanjska)	1	98,00	69,00	77,00	126,00	669.438,00
Jedinica pakiranja (unutarnja)	1	98,00	69,00	77,00	126,00	669.438,00
Jedinica pakiranja (pojedinačna)	1	98,00	69,00	77,00	126,00	669.438,00

Carisnki tarifni broj: 9403991090

ETIM Class: EC000000

Safety notes

The product may only be operated on sockets that are protected by a residual current circuit breaker.
The electrical connection of the product must be made directly to a permanently installed socket.
The use of multiple sockets or extension cables is not permitted.
The connection cable must be undamaged. A cable with kinks, crushing or cracks must be replaced immediately.
Before connecting electrical devices to the product, ensure that the device to be connected, including its connection cable, is in a fault-free and damage-free condition.
Always insert the plug fully into the socket. It may only be disconnected by pulling on the plug itself - never pull on the cable.
When operating doors or flaps, care must be taken to ensure that the connecting cables of electrical devices are not crushed or damaged
Use only in dust and moisture-protected indoor areas
Prevent higher humidity or temperatures than those specified in the data sheet - Avoid moisture, dust or vapors, solvents, flammable gases.
Avoid moisture, dust or vapors, solvents, flammable gases.
The appliance may only be dismantled and transported if the mains plug has been disconnected beforehand.
Only connect the charging system to an earthed and easily accessible socket.
Safety must be assessed by a qualified electrician.
The sockets may only be used with the devices intended for this purpose, for example:
Chargers for rechargeable batteries and hand-held devices
Smartphones or tablets (mobile devices)
Laptops / Notebooks / UltraBooks (mobile computers)
Mobile batteries / PowerBanks
Please ensure that the maximum total output specified on the rating plate is not exceeded.
Please also ensure that no liquids enter the electrical equipment of the cabinet.
Only charge devices under supervision. Long-term storage of any devices with Li-ion batteries is not permitted.
