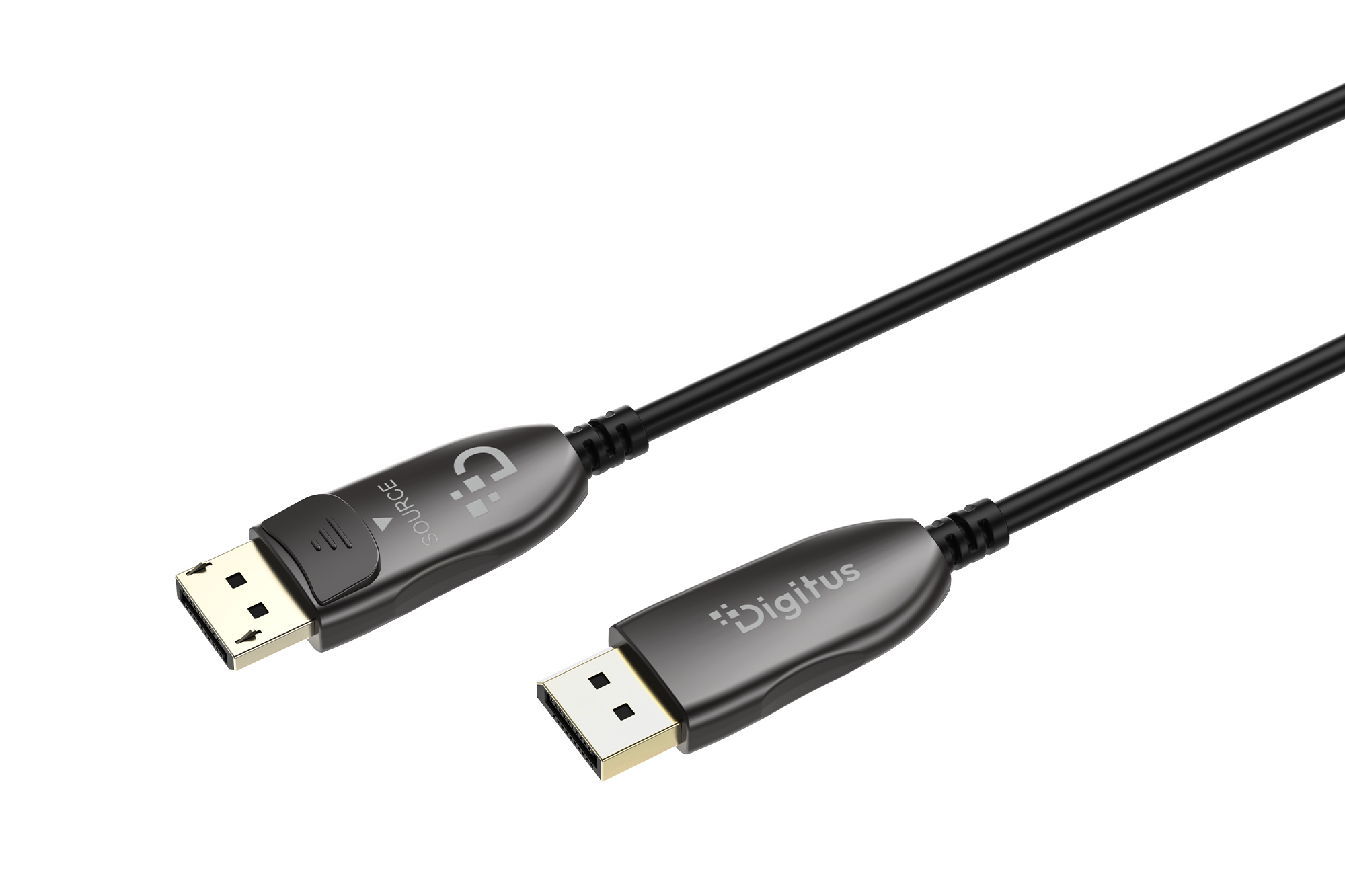

DIGITUS DisplayPort AOC Hybrid fiber optic cable, UHD 8K, 40 m

Product number: AK-340108-400-S

EAN: 4016032510277

DisplayPort AOC Connection Cable M/M, 40.0m, UHD 8K, 8K@120Hz, DP 2.1, gold, bl

Transmits uncompressed video and audio signals in up to 8K/ 120Hz with a bandwidth of up to 54 Gbps losslessly and without latency - ideal for professional AV installations over long distances.

Active fiber optic technology with up to 54 Gbps for stable and loss-free signal transmission
Supports resolutions up to 8K/120Hz and 4K/240Hz
Transmits uncompressed DisplayPort video and audio signals over 40 m
Thin and flexible cable (Ø 4.8 mm, bending radius 48 mm) for quick, easy and safe installation
Insensitive to electromagnetic interference (EMI) for reliable signal transmission
Supports HDR, VRR, ALLM and QFT for smooth and latency-free display
Hybrid construction of glass fiber and copper conductors
Plug & Play - no external power supply required

Distribution Partner Overview

More product information

Description

This active DisplayPort AOC hybrid fiber optic cable enables the loss-free transmission of uncompressed video and audio signals in up to 8K/ 120Hz over long distances. Due to the combination of fiber optic and copper technology, the cable offers a particularly stable signal quality with high immunity to electromagnetic interference (EMI). With a bandwidth of up to 54 Gbps (UHBR13.5), the cable is ideal for demanding applications such as home cinema, conference rooms, digital signage or professional AV installations. The small outer diameter of just 4.8 mm and the flexible design enable easy installation - even in narrow cable ducts or empty conduits. Thanks to Plug & Play, no additional power supply or software installation is required. The cable supports modern DisplayPort features such as HDR, VRR, ALLM and QFT, ensuring a smooth, detailed and low-latency image display. This makes it ideal for high-resolution video applications and gaming setups.

Technical details

Resolution up to 8K (7680 x 4320) at 120Hz
4K at 240Hz and Full HD compatible
Data rate up to 54 Gbps (UHBR13.5)
Hybrid AOC (fiber optic + copper conductor)
HDR (High Dynamic Range) support
VRR (Variable Refresh Rate)
ALLM (Auto Low Latency Mode)
QFT (Quick Frame Transport)
Supported features: HDR, HDR10, HDR10+, Dolby Vision, HLG, VRR, QFT, ALLM
Color depth up to 12 bit
Color format YUV 4:4:4
HDCP 2.3 support
Connector type: DisplayPort male to DisplayPort male
Signal direction: Source → Display
Outer diameter: approx. 4.8 mm
Bending radius: 48 mm, flexibly suitable for installations
Plug & Play - no external power supply required
Operating temperature: 0 °C to +40 °C
Storage temperature: -20 °C to +60 °C
Fiber type: OM3
Sheath material: PVC, black

Attributes

Color cable: black
Connector 1: DP, plug
Connector 2: DP, plug
Connector surface: gold-plated
DisplayPort standard: DisplayPort 2.1
Ferrite filter: none
HDTV Standard: Ultra HD 8K
Hoods: Metallic housing
Interlock: Snap fastener
Length: 40 m
AOC - Active Optical Cable: yes
Shielding: single shielding

Downloads and Certificates

Datasheet

Datasheet EN

Logistics

	Number (pcs)	Weight (kg)	Depth (cm)	Width (cm)	Height (cm)	cm³
Packaging Unit Carton	10	14,00	48,00	38,00	23,50	42.864,00
Packaging Unit Inside	1	1,40	0,00	0,00	0,00	0
Packaging Unit Single	1	1,40	23,00	21,40	7,20	3.543,84

Customs tariff number: 8544700000

ETIM Class: EC002937

Safety notes

When plugging and unplugging the cable, only grasp the plug and do not pull directly on the cable.
Cables must not be kinked sharply or bent at tight angles, as this can damage the inner wires and lead to failures.
Make sure that the cables are not under tensile load, as this can damage the insulation and the wires inside the cable.
Ensure that cables are not laid in areas where they can be easily damaged mechanically.
Cables should not be used in environments with extremely high or very low temperatures. Observe the product specifications for the maximum operating temperature of the cable
Check cables regularly for visible damage such as cracks, kinks or signs of wear. Defective cables should be replaced immediately to avoid failures, short circuits or even electric shocks.
