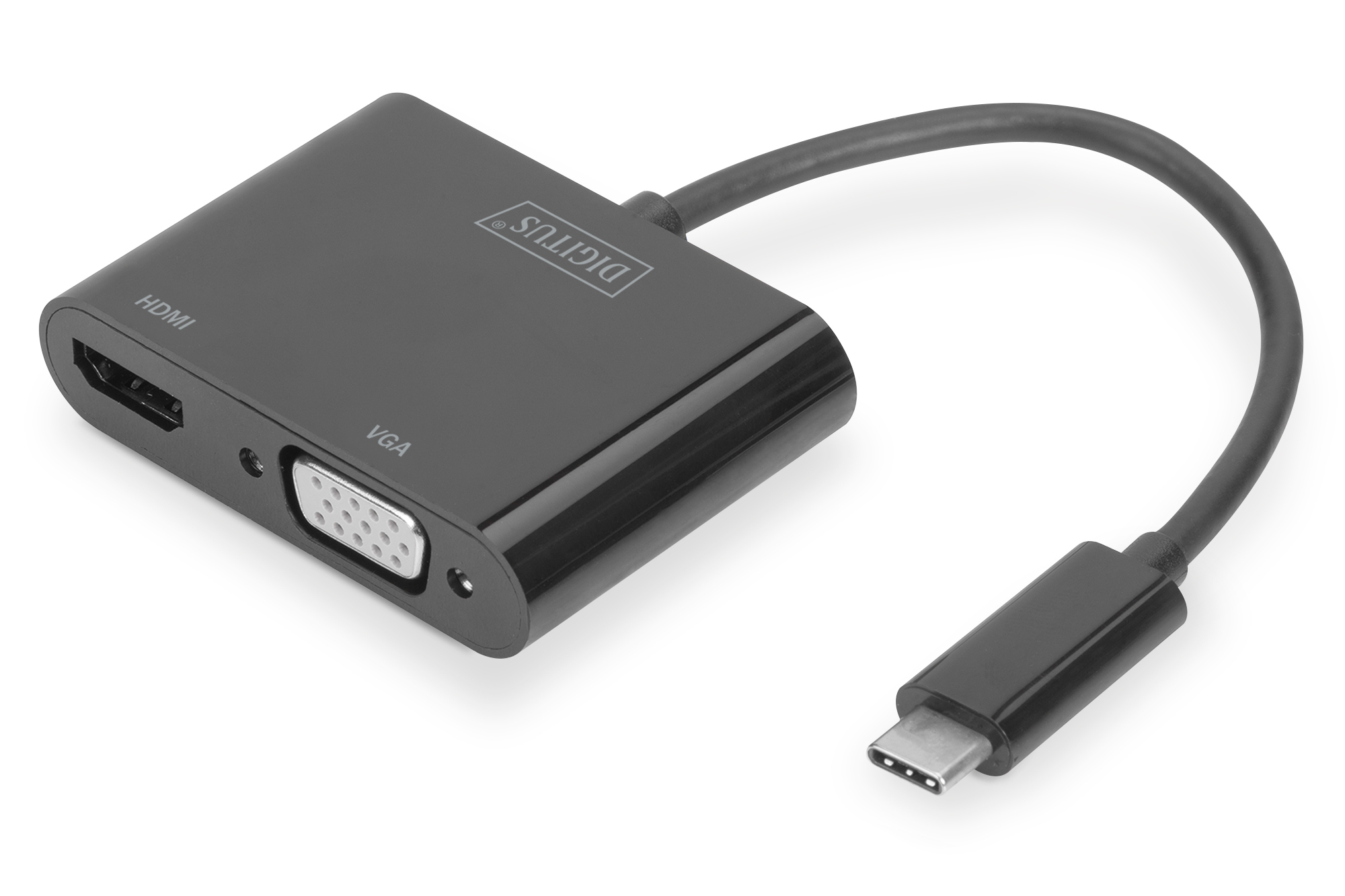

USB Type-C™ - HDMI + VGA Adapter

DIGITUS USB Type-C™ - HDMI + VGA Adapter

Product number: DA-70858
EAN: 4016032451525

USB Type C to HDMI + VGA Adapter 4K/30Hz / Full HD 1080p, black

Extends your USB-C™ device with two video interfaces (HDMI and VGA)

  • Connect a TV, monitor or projector with a HDMI or VGA port to your USB-C™ device
  • Extends your USB-C™ device with two video interfaces (HDMI and VGA)
  • Video signal playback on one TV/monitor, if two TVs/monitors are connected at the same time (priority: 1 HDMI, 2 VGA)
  • Supports Ultra HD (4K/30Hz) resolution (HDMI)
  • USB-C™ version: USB 3.1 (Gen. 1)
  • Corresponds to the VESA DisplayPort Alternate Mode

Distribution Partner Overview

More product information

Description

The USB Type-C™ - HDMI + VGA video adapter extends your USB-C™ device with two video ports (HDMI and VGA). Connect an additional TV set or monitor to your laptop or hold a presentation with a projector. The highest possible resolution is UHD (4K/30Hz). You can use an additional monitor provided two monitors are connected, with the HDMI port having the priority. The video adapter is suitable for all operating systems: Windows, Mac, Google Chrome.

Technical details

  • Connection 1: USB-C™ plug
  • Connection 2: HDMI socket
  • Connection 3: VGA socket
  • Video signal playback on one TV/monitor, if two TVs/monitors are connected at the same time (priority: 1 HDMI, 2 VGA)
  • Extends your USB-C™ device with two video interfaces (HDMI and VGA)
  • 1x HDMI (UHD, 4K/30Hz)
  • 1 x VGA (Full HD)
  • USB-C™ version: USB 3.1 (Gen. 1)
  • Corresponds to the VESA DisplayPort Alternate Mode
  • Chipset: VL100/IT6562FN
  • Cable length: 11.0 cm
  • Color: Black
  • Dimensions: L 18.0 x W 4.0 x H 1.4 cm
  • Weight: 35 g
  • Not all USB-C™ ports support all functions of USB Type-C™ standards. Make sure that the USB-C™ port of your laptop supports the DisplayPort Alternate Mode (DP Alt-mode).
  • The video output capability depends on the graphics card of your laptop and the connected monitor. Some screens also have a limited resolution.

Attributes

  • Housing: Aluminum
  • LAN connector (RJ45): no
  • Resolution max.: 4096 x 2160 Pixel, 30Hz
  • Card reader: no
  • Number of audio ports: 0
  • Number of display ports: 2
  • Number of network ports: 0
  • Number of USB A ports: 0
  • Number of USB-C ports: 1
  • Number of video ports: 2
  • USB-C Products: yes
  • Video connection ports: HDMI, VGA

Package content

  • USB Type-C™ - HDMI + VGA Adapter
  • QIG (quick installation guide)

Logistics

  Number (pcs) Weight (kg) Depth (cm) Width (cm) Height (cm) cm³
Packaging Unit Carton 80 8,00 50,00 34,00 30,00 51.000,00
Packaging Unit Inside 1 0,10 23,50 7,50 2,30 405,38
Packaging Unit Single 1 0,10 23,50 7,50 2,30 405,38
Customs tariff number: 8471800000
ETIM Class: EC000000

Safety notes

  • Overloading can lead to overheating and damage to the appliance or the connected peripherals.
  • If necessary, use an external power supply to ensure stable performance.
  • If devices such as external hard disks or printers that require a high power consumption are connected, the device should be used with an external power supply. Otherwise, the device could be overloaded or functional problems could occur.
  • Do not expose the device to rain, moisture, vapors or liquids.
  • Do not insert any objects into the device.
  • Do not attempt to repair the unit or open the housing without authorization. You risk an electric shock!
  • Ensure adequate ventilation to prevent damage due to overheating.
  • Dust, moisture, vapors and strong cleaning agents or solvents can cause damage to the device.
  • Disconnect the appliance from the power supply and the connected devices before cleaning.
  • Clean the device with a dust-free cloth.
