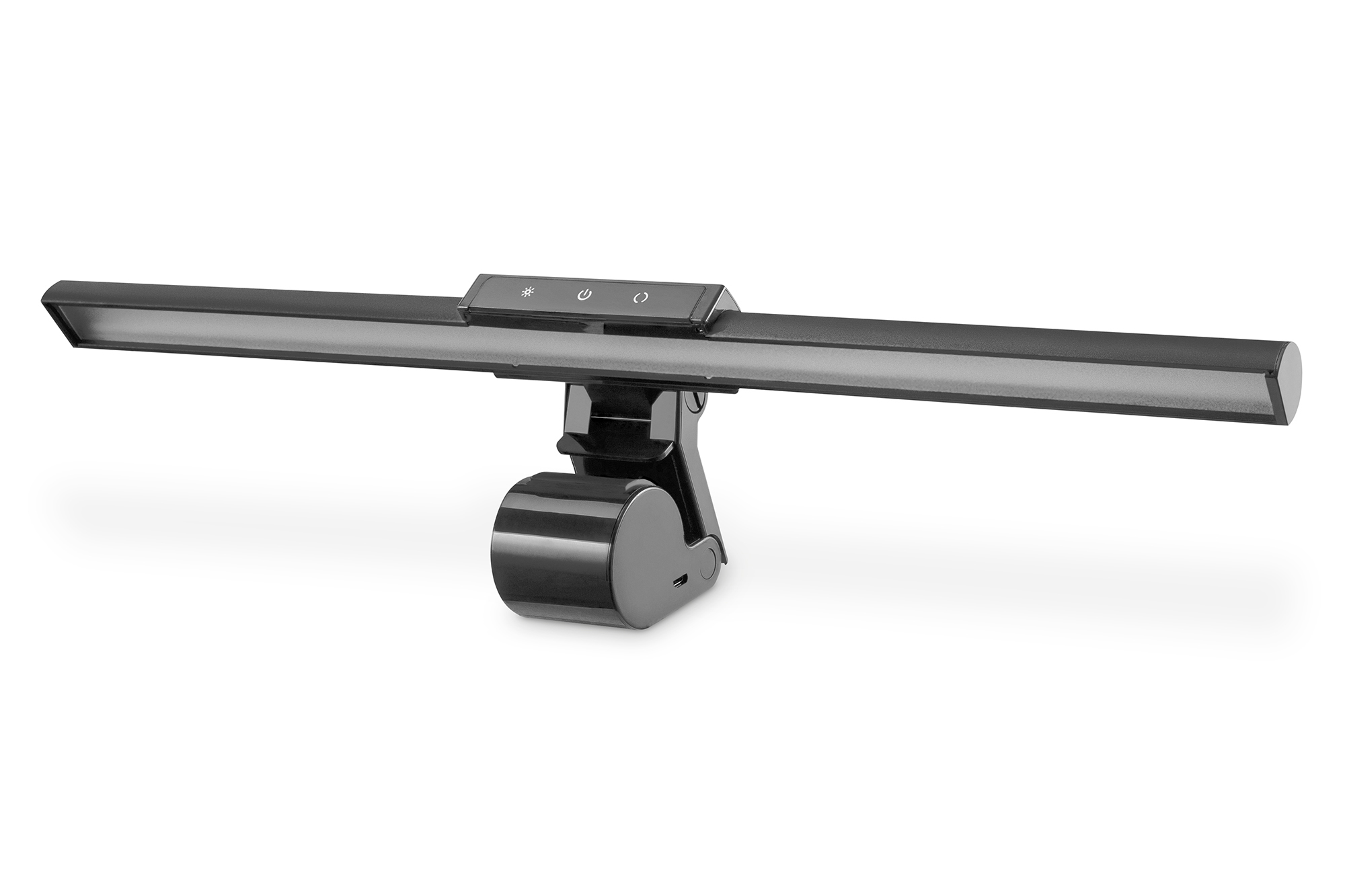

LED Monitor Light with Clamp Mount

DIGITUS LED Monitor Light with Clamp Mount

Product number: DA-90415
EAN: 4016032475033

LED Monitor Bar Light 5W, 250lm, clamp, black

LED Light with Dimmer, Different Color Temperatures, Touch Control and Clamp Mount

  • Adjustable color temperature in 5 levels - from cold to warm (3000-6500K)
  • Dimmer with 5 brightness levels - conveniently adjustable via touch control
  • Touch control: Simple adjustment of the light setting by touch
  • Memory function for last brightness setting
  • Simple clamp fastening (up to 45 mm)

Distribution Partner Overview

More product information

Description

The DIGITUS® LED Light delivers the right lighting conditions in all situations. Choose between cold working light or warm cozy light at different increments and of course in different brightness levels – all conveniently adjustable via touch control. The last light setting remains saved until the next use and does not need to be reconfigured. Installation is carried out with a simple clamp mount on the display, power supply is provided via an enclosed USB connection cable. The minimalist light body sets stylish and sophisticated accents on any desk.

Technical details

  • Dimmer function: 5 levels
  • Color temperatures: 5 levels
  • Color temperature setting: 5 levels
  • LED technology: 48 x SMD 2835 0.2 W
  • Configurable color temperature (CCT): 3000 K - 6500 K
  • Lumens: 250 lm
  • Central light power: 800 Lux at 30 cm (distance from light source)
  • Color rendering index: >80
  • Energy efficiency class: F
  • Power supply: USB (5 V / 1 A)
  • Power supply can be provided via computer, power bank, USB power adapter
  • Power consumption: 5 W
  • Installation: Clamp mount
  • Material: ABS plastic, aluminum alloy
  • Protection type: IP20
  • Dimensions: W 44.7 x D 8.5 x H 2.5 cm
  • Weight: 320 g
  • Color: Black

Attributes

  • Style: Monitor lamp

Package content

  • 1 x LED Monitor Light with Clamp Mount
  • 1 x USB connection cable (USB A - Micro B)

Downloads and Certificates

Certificate

Datasheet

QIG

Logistics

  Number (pcs) Weight (kg) Depth (cm) Width (cm) Height (cm) cm³
Packaging Unit Carton 20 16,00 51,00 56,00 44,00 125.664,00
Packaging Unit Inside 1 0,80 0,00 0,00 0,00 0
Packaging Unit Single 1 0,80 11,00 50,00 10,50 5.775,00
Customs tariff number: 9405423100

Safety notes

  • Use only the power supply that is included or specified.
  • Use only in dry indoor areas; IP20 means no protection against water.
  • Do not use the power supply, cable, or light fixture if they are damaged.
  • Do not cover the light; ensure adequate heat dissipation.
  • Do not use in damp environments, near water, or outdoors.
  • Do not attempt to repair or modify the electrical components yourself.
  • Securely attach the light; use the clamp only on suitable tabletops.
  • Lay the cables so that there is no risk of tripping, pinching, or tension.
  • Do not look directly at the light source from a short distance for an extended period of time.
  • Unplug the device from the power source before cleaning it.
  • Do not exceed the maximum load capacity.
  • Install only on suitable surfaces with sufficient load-bearing capacity.
  • Use the included mounting hardware only if it is suitable for the surface; otherwise, select appropriate fasteners.
  • Check the screws regularly to make sure they are tight.
  • Do not use the product if the mount, screws, clamping mechanism, or straps are damaged.
  • Secure installed equipment to prevent it from falling.
  • Route the cables so that no tensile forces are applied to the mounting bracket or the device.
  • Install only as directed; if in doubt, consult a qualified person.
  • Install only under suitable tabletops.
  • Specify the maximum load capacity and do not exceed it. If not yet specified, add this information.
  • Do not use the drawer or shelf as a handrail, step, or support.
  • Check the screws regularly.
  • Be aware of pinch points when opening or closing.
  • Distribute heavy objects evenly.
  • Keep small parts and assembly materials out of the reach of children.
  • Install the cable channel/cable guide only as specified in the installation instructions.
  • Do not overload the unit; do not loosely insert heavy power supplies or power strips if the mount is not designed to support them.
  • Do not kink, crush, or install power lines while they are energized.
  • Route cables so that they are not pinched, stretched, or damaged when adjusting the height of desks.
  • Ensure adequate ventilation for power supplies and power strips; prevent heat buildup.
  • Do not continue to use damaged cables.
  • Keep Velcro tape and cable sleeves out of the reach of small children; do not use as toys.
  • Avoid sharp edges when cutting.
  • Do not exceed the maximum load capacity.
  • Use only on a level, non-slip surface.
  • Do not use as a ladder, step, play equipment, or carrying aid.
  • Do not stand on the seat.
  • Because the base is movable/tiltable, make sure it is stable.
  • Not suitable for use by children without supervision.
  • Before use, check that the seat, footrest, gas spring, and connections are properly installed and undamaged.
  • Do not open, heat, damage, or attempt to repair the gas spring on your own.
  • Do not continue to use the product if you hear unusual noises, if it feels unstable, or if any parts are damaged.
  • Follow the installation instructions.
