10" Gigabit 8-Port L2+ Managed PoE+ Switch

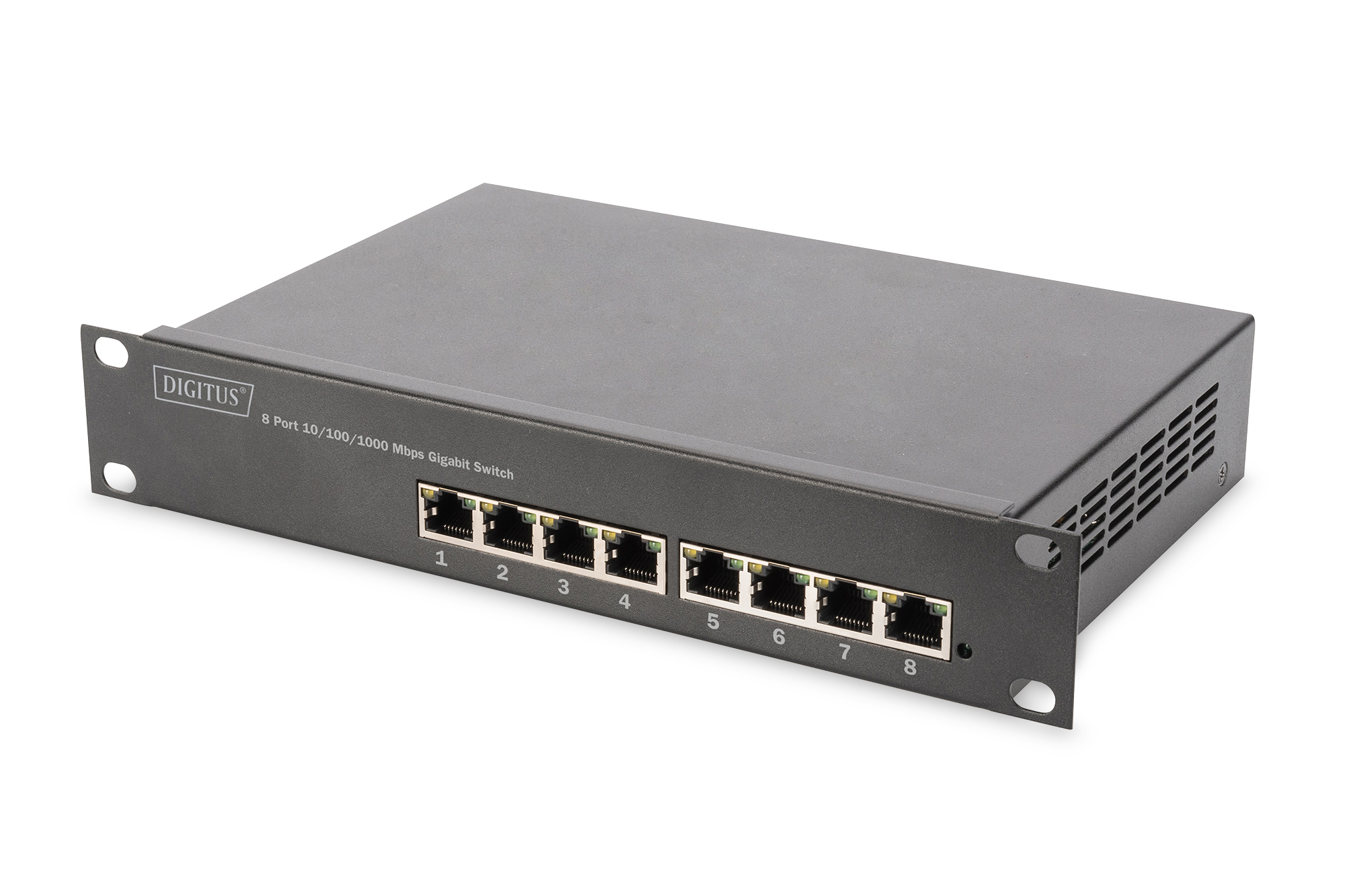

DIGITUS 10" Gigabit 8-Port L2+ Managed PoE+ Switch

Product number: DN-95331
EAN: 4016032464365

10 inch 8-Port Gigabit L2+ Managed PoE+ Switch 80 W

Combines professional-grade network security, VLAN segmentation, and PoE+ power delivery in a compact, quiet 10-inch switch.

  • 8× Gigabit PoE+ ports for access points, cameras, VoIP, and IoT (30 W per port)
  • L2+ Managed for Professional Network Management
  • 80 W total PoE budget
  • VLAN (port-based / 802.1Q) for secure segmentation
  • QoS for Prioritizing VoIP and Video
  • IGMP Snooping for Monitoring & IPTV
  • Link Aggregation (LACP) for High Availability and Bandwidth
  • Port Security & Access Control
  • Management via Web GUI, SNMP, and CLI
  • Fanless metal enclosure for 24/7 operation

Distribution Partner Overview

More product information

Description

The DIGITUS® DN-95331 is a professional 8-port Gigabit PoE+ switch in a compact 10-inch form factor designed for high-performance networks in enterprise, security, and building automation applications. Eight PoE+ ports (IEEE 802.3af/at, up to 30 W per port) provide centralized power to IP cameras, Wi-Fi access points, VoIP phones, and IoT components. Unlike basic PoE switches, the DN-95331 offers comprehensive L2+ management features—VLAN, QoS, IGMP snooping, link aggregation, port mirroring, access control, and traffic control—enabling precise segmentation, security, and prioritization. It is managed via a web GUI, SNMP, or CLI. The fanless metal housing ensures silent, continuous operation. The combination of PoE+, Gigabit performance, and L2+ management makes it the ideal foundation for CCTV systems, digital building infrastructure, and connected workplaces.

Technical details

  • Network & Performance
  • 8× 10/100/1000 Mbps RJ45 (PoE+)
  • PoE Standards: IEEE 802.3af/at, up to 30 W per port, 80 W total
  • Non-blocking Gigabit switching, store-and-forward
  • Auto-MDI/MDI-X
  • Management (L2+)
  • VLAN (Port-based / 802.1Q)
  • QoS, IGMP Snooping, Broadcast & Storm Control
  • Link Aggregation (LACP)
  • Port Mirroring, Traffic Rate Limiting
  • Port Security & Access Control
  • Web GUI, SNMP (v1/v2c, v3 depending on model), CLI/Telnet/SSH
  • Firmware & Configuration Backup
  • Design & Installation
  • Completely fanless
  • Metal housing
  • 10-inch rack-mount
  • Dimensions: approx. 250 × 150 × 42 mm, Weight: approx. 2 kg
  • Electrical Systems & Environment
  • Internal power supply, 100–240 V AC
  • Max. power consumption: approx. 96 W (load-dependent)
  • Operating temperature: 0–40 °C; storage temperature: –10–70 °C
  • Humidity: 20–85%, non-condensing

Attributes

  • Number of ports: 8
  • PoE Power budget: 80 W
  • PoE standard: IEEE802.3at (PoE+)
  • Ethernet speed: Gigabit
  • Industrial usage: no
  • Installation type: 10 inch, Desktop
  • Managed: yes
  • Outdoorsuitable: no
  • PoE (Power over Ethernet): yes
  • Protection against vanadlism: no
  • VLAN: yes

Package content

  • DN-95331 Switch
  • Power cable
  • Quick Start Guide
  • Rubber feet

Downloads and Certificates

Certificate

Datasheet

Firmware

Manual

QIG

Logistics

  Number (pcs) Weight (kg) Depth (cm) Width (cm) Height (cm) cm³
Packaging Unit Carton 8 12,80 33,00 34,50 49,00 55.786,50
Packaging Unit Inside 1 1,60 7,00 24,00 32,00 5.376,00
Packaging Unit Single 1 1,60 7,00 24,00 32,00 5.376,00
Customs tariff number: 8517620000
ETIM Class: EC000734

Safety notes

  • This product is intended for indoor use only.
  • Read all instructions and follow all warnings and instructions on the device.
  • Do not place this appliance on an unstable surface (such as a trolley, stand, table, etc.).
  • Do not use this appliance near water.
  • Do not place this appliance near or above a radiator.
  • The housing is equipped with openings for heat dissipation and ventilation. To prevent overheating during operation, the ventilation openings must not be blocked or covered.
  • Do not place the appliance on a soft surface (e.g. bed, sofa, blanket, etc.). This will block the ventilation.
  • The appliance must not be installed in a closed environment if adequate ventilation is not guaranteed.
  • Do not spray any liquids onto the appliance.
  • Disconnect the mains plug before cleaning. Do not use any liquid or foam cleaners.
  • Clean the appliance with a damp cloth.
  • Connect the device according to the power supply on the rating plate.
  • To prevent damage to the appliance, it is important that all appliances are properly earthed.
  • Do not place any objects on the power cable and lay it in such a way as to avoid tripping hazards.
  • Use a surge protector, a regulator or an uninterruptible power supply (UPS) to protect your system from sudden, temporary and reduced power.
  • Secure the system cable and mains cable properly and ensure that no objects are pressing on the cable.
  • Do not insert any objects into the appliance through the openings in the housing. There is a risk of a short circuit, which can lead to fire or electric shock.
  • Do not attempt to repair the appliance yourself. Always contact an authorized customer service centre.
  • If any of the following conditions occur, unplug the appliance and send it to an authorized service centre for repair
  • The mains cable, power supply unit or plug for the power supply is damaged or worn;
  • Liquid has penetrated the appliance;
  • The device has been exposed to rain or water;
  • The device has been dropped or the housing has been damaged;
  • The function of the device has obviously changed;
  • The appliance cannot be operated as described in the operating instructions.
