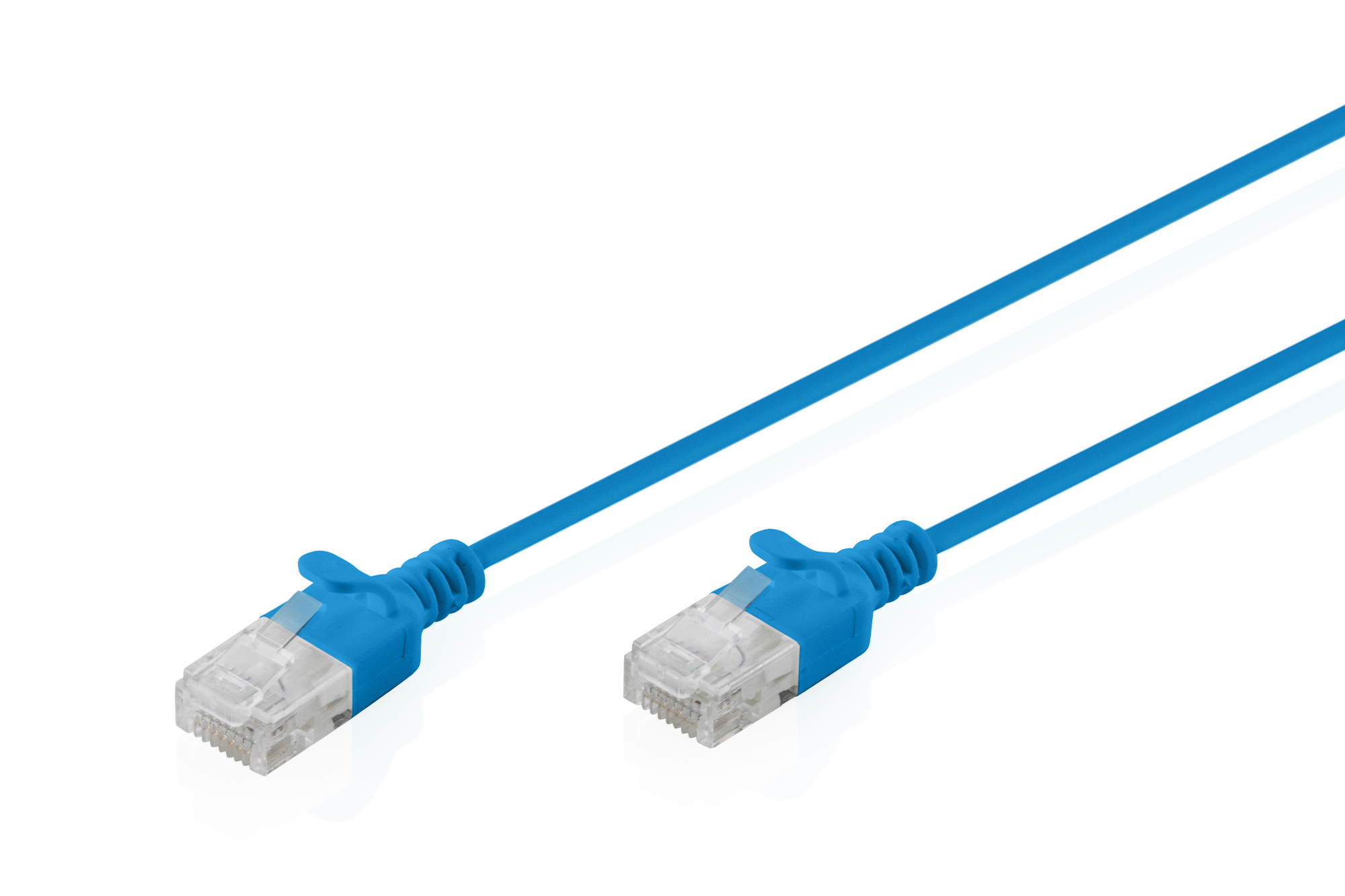

CAT 6 U-UTP Slim patch cable, 2 m, blue

DIGITUS CAT 6 U-UTP Slim patch cable, 2 m, blue

Product number: DK-1618-020S-B
EAN: 4016032506836

CAT 6 U-UTP slim patch cord, Cu, LSZH AWG 32/7, length 2m, Blue

Future-proof standard and reliable CAT 6 performance for your network.

  • Advantage: Slim cable diameter of 2.7 mm with high flexibility for easy installation in confined spaces
  • Features: Transmission speed up to 1 Gbit/s and frequency 250 MHz
  • Application area: Ideal for office networks, home use, patch panels and environments with high cabling density
  • PoE-capable: Supports PoE and PoE+ applications with pure copper conductors

Distribution Partner Overview

More product information

Description

DIGITUS® CAT 6 U-UTP Slim patch cables with a transmission frequency of up to 250 MHz are equipped with a reduced outer diameter of only 2.7 mm and a flexible jacket, which enables space-saving and versatile use in any network. The cables have stranded AWG 32/7 copper conductors and an unshielded twisted pair structure (U-UTP), which ensures flexibility and durability. They are manufactured in accordance with ISO/IEC 11801 and DIN EN 50173 CAT 6 standards, ensuring reliable compliance with international specifications. Each cable is equipped with a molded anti-kink sleeve with strain relief and a locking lever protection that prevents cable damage and locking breaks. These slim patch cables are supplied in DIGITUS® hangtag packaging and are the ideal solution for structured cabling in offices, homes or high-density environments.

Technical details

  • Outer casing: LSZH (Low Smoke Zero Halogen)
  • Total diameter: 2.7 mm ± 0.15 mm
  • Stranded wire: AWG 32/7 bare copper, 0.08 ± 0.005 mm
  • Insulation: HD-PE (high-density polyethylene)
  • Bending radius: 15x outer diameter
  • Plug: RJ45 plug
  • Color code: Orange x white, green x white, blue x white, brown x white
  • Cabling standard: EIA/TIA 568B
  • PIN assignment: 1:1
  • Contact resistance: maximum 376.96 Ω/km at 20 °C
  • Imbalance of the resistance: maximum 3 %
  • Operating temperature: -20 °C to +60 °C
  • Flame retardancy: IEC 60332-1
  • Smoke emission: IEC 61034
  • Typical applications: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
  • Standards: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
  • Dielectric strength: 500 V alternating current for 1 minute without breakdown (TIA/EIA-364-21)
  • Service life: 750 mating cycles
  • Packaging: DIGITUS hangtag

Attributes

  • Configuration: 1:1
  • Category: CAT 6
  • Shielding: U-UTP, unshielded
  • Length: 2 m
  • Color: blue
  • Jacket: LSOH
  • Slim Version: yes
  • Flat Version: no

Downloads and Certificates

Datasheet

Logistics

  Number (pcs) Weight (kg) Depth (cm) Width (cm) Height (cm) cm³
Packaging Unit Carton 300 8,80 29,00 29,00 46,00 38.686,00
Packaging Unit Inside 1 0,03 0,00 0,00 0,00 0
Packaging Unit Single 1 0,03 27,00 17,00 1,00 459,00
Customs tariff number: 8544421000
ETIM Class: EC000000

Safety notes

  • When plugging and unplugging the cable, only grasp the plug and do not pull directly on the cable.
  • Cables must not be kinked sharply or bent at tight angles, as this can damage the inner wires and lead to failures.
  • Make sure that the cables are not under tensile load, as this can damage the insulation and the wires inside the cable.
  • Ensure that cables are not laid in areas where they can be easily damaged mechanically.
  • Cables should not be used in environments with extremely high or very low temperatures. Observe the product information on the maximum operating temperature of the cable
  • Check cables regularly for visible damage such as cracks, kinks or signs of wear. Defective cables should be replaced immediately to avoid failures, short circuits or even electric shocks.
