Base 600 x 600 mm (WxD) for Unique & Unique Light network enclosures

DIGITUS Base 600 x 600 mm (WxD) for Unique & Unique Light network enclosures

Product number: DN-19 PLINTH-6/6-1
EAN: 4016032333043

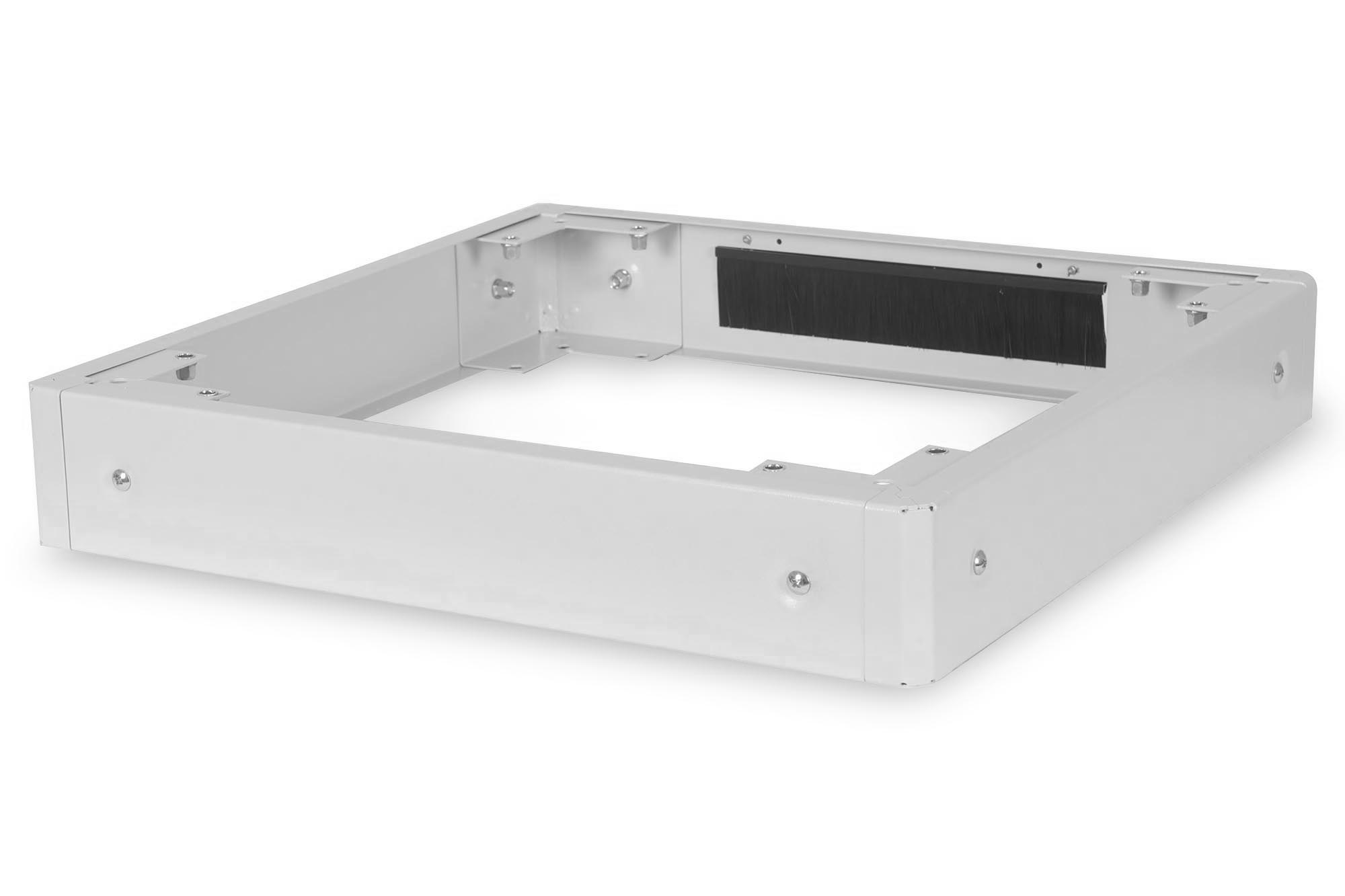

Plinth, 100 x 600 x 600 mm, grey for Unique, Unique Light

The DIGITUS® 483 mm (19") accessories have been developed to meet the high demands of IT infrastructure. It is manufactured according to German quality standards.

  • Extends the height and thus the storage space for excess cable lengths
  • Simple cable management thanks to cable feed-through with brush strip
  • Simplified logistics: delivered unassembled

Distribution Partner Overview

More product information

Description

With the DIGITUS® plinths you can increase the ground clearance of your network or server enclosure by 100 mm. If required, up to two plinths can be mounted on top of each other to achieve a height of 200 mm. The interior can be used to store excess cable lengths and for cable management. Delivery is unassembled to optimize logistics.

Technical details

  • Simple installation under the cabinets
  • 1.5 - 2.0 mm thick sheet steel
  • Removable side panels
  • Rear panel with cable entry and brush strip, 300 x 60 mm
  • Maximum load capacity: 1200 kg

Attributes

  • Color: light grey, RAL 7035
  • Depth: 600 mm
  • Width: 600 mm
  • For cabinet series: Unique & Unique Light Network
  • Inch form factor (IEC 60297): 482.6 mm (19")

Package content

  • Fastening material

Downloads and Certificates

Datasheet

QIG

Logistics

  Number (pcs) Weight (kg) Depth (cm) Width (cm) Height (cm) cm³
Packaging Unit Carton 1 6,30 19,00 55,50 14,00 14.763,00
Packaging Unit Inside 1 6,25 19,00 55,50 14,00 14.763,00
Packaging Unit Single 1 6,25 19,00 55,50 14,00 14.763,00
Customs tariff number: 7326909890
ETIM Class: EC000721

Safety notes

  • When installing and using the accessory product for network cabinets, observe the respective safety instructions of the manufacturer or the cabinet system in which you want to use the accessory.
